40KG Motorized Sliding Window Opener 400mm Stroke Automatic Skylight Opener

40KG Motorized Sliding Window Opener 400mm Stroke Automatic Skylight Opener

  • Highlight

    40KG Motorized Sliding Window Opener

    ,

    Motorized Sliding Window Opener 400mm

    ,

    400mm Stroke Automatic Skylight Opener

  • Service
    OEM Service
  • Working Voltage
    DC 24V
  • Controlled Way
    Remote Control
  • Series
    Electric Window Opener
  • Product Name
    Smart Window Opener
  • Style
    Smart
  • Speed Regularation
    Support
  • Application
    Large Size And High Loading Window
  • Place of Origin
    China
  • Brand Name
    Gardens
  • Certification
    CE/CCC
  • Model Number
    GM32P
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiated price
  • Packaging Details
    Carton
  • Delivery Time
    7-15 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10000 pieces per month

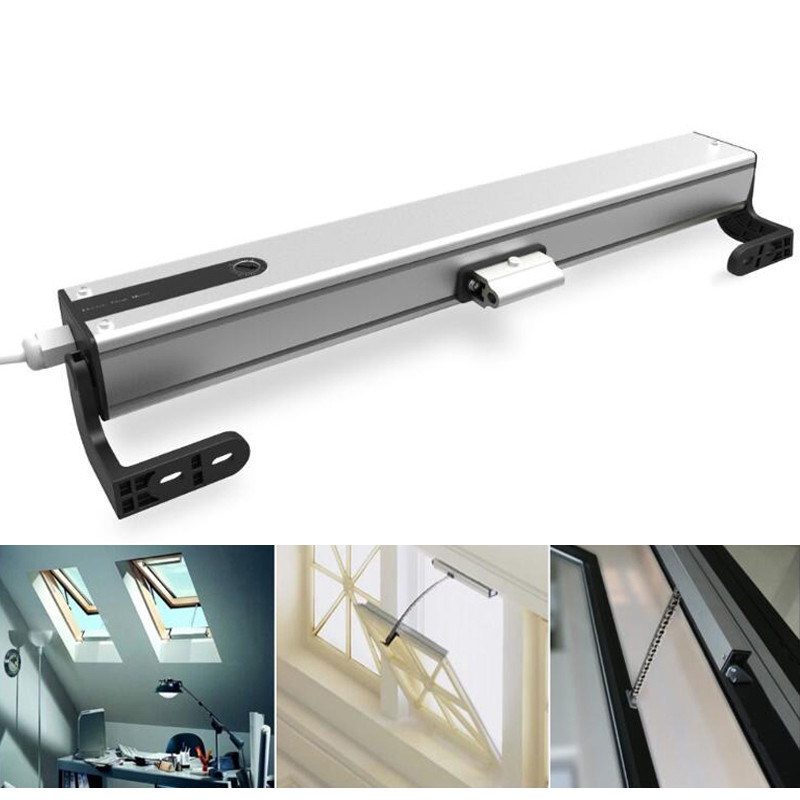

40KG Motorized Sliding Window Opener 400mm Stroke Automatic Skylight Opener

Intelligent Remote Control Life-Relaxing Smoke Sensor Electric Window Pusher Motor

Intelligent Remote Control Electric Sliding Chain Linear Actuator Window Opener

Product Description

Product name

Single chain electric window opener

Product typeType

Intelligent skylight

Usage

Shutter automatic control

Description

Control sensor

Color Classification:220V 40KG 300Stroke Motor+Remote Control 220V 40KG 400Stroke Motor+Remote Control 220V 40KG 500Stroke Motor+Remote Control 220V 40KG Customized Stroke Motor+Remote ControlDC24V single chain window opener/DC24V single window actuator for skylights

Type of Intelligence:Other

Intelligent Control Or Not:Yes

Operating Voltage:220V

Household Electricity Control Mode:Wireless Remote Control

The Received Signal:433.92

Radio-Frequency Signals

Push Tension:400N 40KG

Applicable Window Type:Sun Room Skylight Hanging Window Casement Window
Applications:

1.Intelligent protection, high-quality materials, Stroke distance can be customized according to customer needs.
2.High quality design life load open and close over 30000 times,low noise when turned on.The locking force is 2000N, which is safe and reliable.
3.12 installation methods, suitable for various window installations
4.Remote control (indoor up to 50m or more), manual button, computer centralized control, mobile phone remote, automatically open or close alternative or multiple windows.
5.Expansion of smart devices such as human body sensors, wind and rain sensors, smoke alarms, thermostats, timers, etc.
6.Stroke distance can be customized according to customer needs.

Detailed Images

Tuya Smart App Built-in Autoamtic Window Opener Features

1. Wide voltage AC100 ~ 240V input, suitable for national voltage standards

2. Different strokes can be selected by adjusting the knob switch, the maximum stroke can reach 400mm

3. Suitable for windows with a width as small as 470mm

4.Life can reach 10,000 opening and closing actions

5. The chain adopts double-layer stainless steel metal sheet, which runs stably and smoothly.

6. The shell is made of sandblasted aluminum profile, and the left and right end caps and the mounting bracket are made of zinc alloy precision die castings.

7. The internal structure is fixed by two fire-rated ABS seats, and the guide rail is made of POM material to achieve a higher safety factor and silent effect

8. Simple installation and disassembly, more humane design

Function:
1.Intelligent protection, high-quality materials, Stroke distance can be customized according to customer needs.
2.High quality design life load open and close over 30000 times,low noise when turned on.The locking force is 2000N, which is safe and reliable.
3.12 installation methods, suitable for various window installations
4.Remote control (indoor up to 50m or more), manual button, computer centralized control, mobile phone remote, automatically open or close alternative or multiple windows.
5.Expansion of smart devices such as human body sensors, wind and rain sensors, smoke alarms, thermostats, timers, etc.
6.Stroke distance can be customized according to customer needs.

Smart APP/WIFI/Bluetooth/Remote control etc.
Avariety of opening methods to meet diffierent occasions,whether you are at home or outside,you can easily operator the windows with one button.

40KG Motorized Sliding Window Opener 400mm Stroke Automatic Skylight Opener 0

40KG Motorized Sliding Window Opener 400mm Stroke Automatic Skylight Opener 1
