1000W WiFi Smart Wiring Devices Bivolt Switch Socket Combo Power Monitor Brazil

Brand Name:	SIXWGH
Model Number:	WHX13-1 (120)
MOQ:	500
Price:	USD+6.3-7.5+piece
Payment Terms:	D/A,T/T,Western Union,D/P,L/C
Supply Ability:	10000+piecex+10days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE,RoHS,FCC,UL

Panel Type:

Brazil 4x2 (118mm X 72mm)

Socket Current:

20A (Compatible With 10A)

Switch Load:

1000W / Gang

Voltage:

110V - 240V AC (Bivolt)

Wireless:

WiFi 2.4GHz 802.11 B/g/n

Wiring Mode:

Neutral + Live Wire

Power Monitor:

Yes (Socket Module)

Material:

Tempered Glass + PC V0

Standby Power:

<0.5W

App Support:

Tuya / Smart Life

Packaging Details:

50pcs/box 8.2kg/box Size:47*29*46.5

Highlight:

1000W Smart Wiring Devices

Bivolt Smart Wiring Devices Bivolt Switch

1000W switch and socket smart home

Product Description

Brazil WiFi Smart Switch Socket Combo with 20A Socket Tempered Glass Panel and Power Monitor for Smart Home Automation

Core Specifications

Standard	Brazil 4x2 (120 Type)
Configuration	1/2/3 Gang Switch + 20A Socket
Max Load (Socket)	20A / 4000W (Air Conditioner Ready)
Input Voltage	AC 100-240V (Bivolt)
Power Monitor	Real-time KWh Tracking
Panel Material	Tempered Crystal Glass
Wiring	Neutral Wire Required
Voice Support	Alexa / Google / Alice

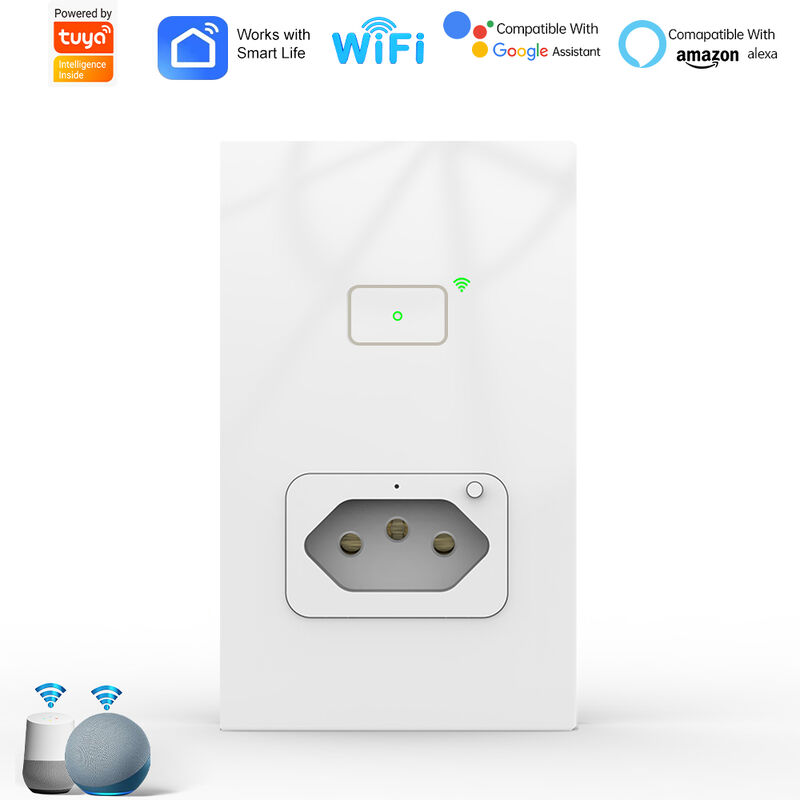

Product Overview

The ultimate smart upgrade for Brazilian homes. This 2-in-1 Combo Panel fits standard 4x2 wall boxes, replacing old plastic plates with a luxury tempered glass interface. It combines a responsive Touch Switch with a heavy-duty 20A Socket, capable of powering 4000W appliances like heaters and coffee machines. With Energy Monitoring, it appeals to cost-conscious buyers. Fully Bivolt and compatible with Tuya, it's a high-margin product for the South American market.

Frequently Asked Questions

Does it fit all Brazilian wall boxes?

Yes, it is designed for the standard 4x2 inch (120 type) rectangular boxes used in 99% of Brazilian residential and commercial buildings.

Is the socket 10A or 20A?

It features a 20A (4.8mm pin) socket design, which also accommodates 10A (4.0mm pin) plugs, making it universal for both heavy appliances (AC, fryers) and standard devices.

Can I track electricity usage?

Yes! The socket module supports Power Monitoring. Users can view voltage, current, and historical consumption in the App to manage electricity bills.

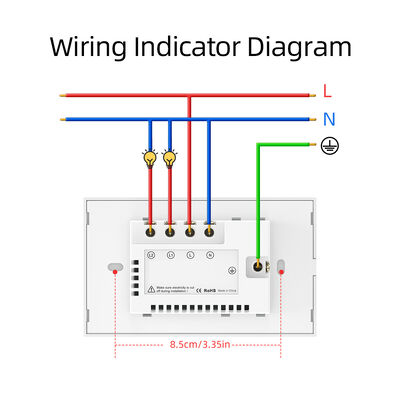

Do I need a neutral wire?

Yes. To ensure the socket provides stable power and the switch operates without flickering, a Neutral wire connection is required in the wall box.

Is the glass panel durable?

We use 4mm Tempered Glass. It is scratch-resistant, waterproof, easy to clean, and does not yellow over time like plastic switches.
