Ultra Compact 40mm Smart Lighting Control WiFi Touch Wall Switch For EWeLink & Smart Life App

Name: Ultra Compact 40mm Smart Lighting Control WiFi Touch Wall Switch For EWeLink & Smart Life App
Brand: Shenzhen Wenhui Technology Development Co., Ltd.
SKU: WHD09
Price: 3.20 USD
Availability: InStock

Brand Name:	SIXWGH
Model Number:	WHD09
MOQ:	2000
Price:	USD 2.2-5.8 piece
Payment Terms:	D/A,L/C,D/P,T/T,MoneyGram,Western Union
Supply Ability:	1000+piece+10Days

Detail Information

Product Description

Detail Information

Place of Origin:

China, Guangdong Province, Shenzhen City

Certification:

CE,FCC,RoHS,LVD,RED

Document:

ROHS.pdf

Scheduling:

Supports Timer And Scheduling Functions

Warranty:

2 Years

Material:

ABS Plastic And Aluminum

Installation Type:

Wall-mounted, Plug-in

Voice Control:

Supported

Color Temperature:

2700K To 6500K (adjustable)

App Control:

Available On IOS And Android

Power Source:

AC 100-240V

Number Of Zones:

Up To 10 Zones

Connectivity:

Wi-Fi, Zigbee, Bluetooth

Dimming:

Yes, Adjustable Brightness

Control Type:

Wireless

Compatibility:

Amazon Alexa, Google Assistant, Apple HomeKit

Energy Efficiency:

Energy Star Certified

Packaging Details:

260pcs/box 13.5kg/box size:39*29*20cm Controller size: 45*45*24mm

Highlight:

Compact Smart Lighting Control

eWeLink Smart Lighting Control

40mm smart wifi touch wall switch

Product Description

Ultra Compact 40x40x24mm WiFi Smart Switch Module with 16A Relay for eWeLink & Smart Life App

Ultra-compact 16A relay module for discreet home automation upgrades, compatible with eWeLink, Smart Life, Alexa, and Google Home.

Product Overview

The WHD09-1 MINI Smart Switch enables seamless integration of traditional lighting and appliances into smart home systems. Its compact dimensions (40×40×24mm) allow installation within standard wall switch boxes or ceiling junctions while maintaining full smart functionality.

Key Features

Compact Design

40×40×24mm form factor fits standard junction boxes for retrofitting existing wiring

Dual App Control

Compatible with eWeLink and Tuya Smart Life apps for remote access and scheduling

Voice Integration

Works with Amazon Alexa, Google Assistant, and Yandex Alice for hands-free operation

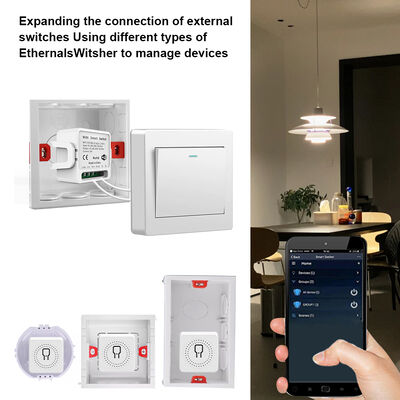

External Switch Support

S1/S2 terminals connect to existing physical switches for local control functionality

High Load Capacity

16A maximum relay rating suitable for most home lighting and appliance circuits

Smart Scheduling

Timer, countdown, and cycle scheduling for automated device control

Energy Efficient

<0.15W standby power consumption for reduced energy usage

RF Remote Support

Compatible with local RF remotes (up to 8 per device) without WiFi requirement

Technical Specifications

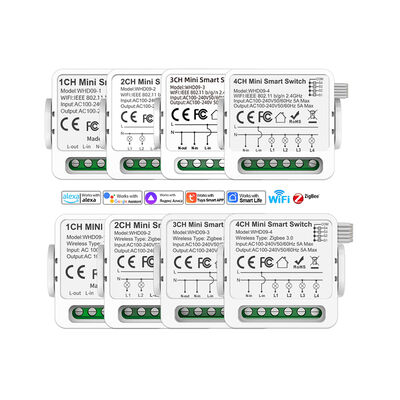

Model	WHD09-1
Dimensions	40 × 40 × 24 mm
Material	ABS Shell
Input/Output Voltage	AC 100-240V 50/60Hz
Maximum Current	16A
WiFi Standard	IEEE 802.11 b/g/n 2.4GHz
Standby Power	<0.15W
Certifications	CE, RoHS

Wiring Applications

Direct Control: Connect light directly to module's L-Out and N-Out terminals
External Switch Control: Connect physical wall switch to S1/S2 terminals for local on/off control while maintaining smart functionality

Package Contents

1 × MINI Smart Switch Module
User Manual with wiring diagrams
