MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter

MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter
Quality MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter factory
Quality MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter factory
Quality MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter factory
Quality MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter factory
Quality MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter factory

Basic Properties

country of origin
Shenzhen, China
brand name
SIXWGH
certificate
CE,RoHS,FCC,UL
product model
WHZK-002 (10inch)

Trading Properties

moq
200
unit price
USD+255-270+piece
payment method
D/A,D/P,L/C,T/T,Western Union
supply capacity
10000+piecex+10days

Product Summary

10.1" Smart Control Panel MAX ZigBee Gateway Video Intercom Security Hub Core Specifications Security Role Central Video Intercom & Alarm Host Privacy Protection Physical Camera Privacy Shutter Display 10.1-Inch Liquid Retina (1920*1200) Protocols ZigBee 3.0 / Wi-Fi / Bluetooth / RS485 Processor & ...

Product Details

Highlight:

ZigBee Gateway smart home panel

,

smart home panel Retina Display

,

10.1 Inch zigbee control panel
Product Model:
Control Panel MAX (10.1")
Processor:
High-Performance Quad-Core
Memory:
2GB RAM + 8GB ROM
Wired Protocol:
RS485 + Ethernet (RJ45)
Wireless Gateway:
ZigBee 3.0 + Bluetooth Mesh
Relay Output:
2-Gang Built-in Switch
Power Input:
100-240VAC + 12VDC
Camera Spec:
5MP With Privacy Shutter
Resolution:
1920 X 1200 FHD
Installation:
Standard Double 86 Box

Product Description

10.1" Smart Control Panel MAX ZigBee Gateway Video Intercom Security Hub
Core Specifications
Security Role Central Video Intercom & Alarm Host
Privacy Protection Physical Camera Privacy Shutter

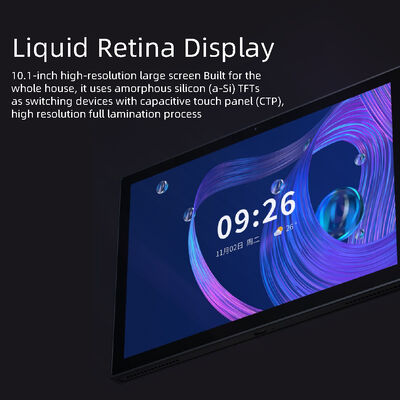

Display 10.1-Inch Liquid Retina (1920*1200)
Protocols ZigBee 3.0 / Wi-Fi / Bluetooth / RS485
Processor & Memory Quad-core Cortex / 2GB RAM + 8GB ROM
Camera 5MP HD Wide-Angle Camera
Intercom Building & Doorbell Video Linkage
Power 100-240V AC (Neutral Wire) + 12V DC
Product Overview
The flagship Security Center for luxury properties. This 10.1-inch MAX panel replaces traditional building intercom indoor units, offering RS485 support for professional integration. It serves as the ultimate surveillance hub, displaying feeds from outdoor cameras and doorbells on a massive Retina screen. Crucially, it features a Physical Privacy Paddle to mechanically block the 5MP camera, addressing high-end client concerns about privacy security.
MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter 0 MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter 1 MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter 2 MAX ZigBee Gateway Smart Home Panel Retina Display 10.1 Inch With 5MP HD Camera Privacy Shutter 3
Frequently Asked Questions
Can this replace the indoor monitor for building intercoms?
Yes. It supports Building Intercom protocols (often via RS485 or IP), allowing residents to unlock the lobby door and view visitors directly from this smart panel.
How does it protect user privacy?
Security meets privacy. It has a Physical Privacy Pick (Shutter). Users can slide the switch to physically cover the camera lens, ensuring 100% privacy when the camera is not in use.
Is it powerful enough for multi-channel camera streaming?
Absolutely. Powered by a high-performance Quad-core CPU and 2GB RAM, it smoothly handles real-time RTSP video streaming from multiple security cameras without lag.
Does it act as a security gateway?
Yes, it is a Super Host. The built-in ZigBee 3.0 gateway connects hundreds of sensors (door/motion/smoke). It processes alarm logic locally (Edge Computing) for instant response even if the internet fails.
What is the "iShare" function?
It allows room-to-room video intercom. You can install multiple panels (e.g., in the master bedroom and kitchen) to create an internal secure communication network.
