ZigBee 3.0 Smart Plug with 10A Max Load and Repeater Function for Tuya Hub

Brand Name:	SIXWGH
Model Number:	WHDM02
MOQ:	500
Price:	USD+3.1-4.2+piece
Payment Terms:	D/P,T/T,Western Union,D/A,L/C
Supply Ability:	10000+piecex+10days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE,RoHS,FCC,UL

Wireless Protocol:

ZigBee 3.0 (IEEE 802.15.4)

Device Role:

Router (Signal Repeater)

Gateway Compatibility:

Tuya / Smart Life Hub

Max Load:

10A Resistive

Standby Power:

<0.3W (Ultra Low)

Response Latency:

Millisecond Level

Housing Material:

PC V0 Fireproof

Working Temp:

-20°C To +45°C

Network Range:

10-30m (depending On Obstacles)

Certification:

FCC, CE, RoHS

Packaging Details:

100pcs/box 9.5kg/box Size:33*33*28cm

Highlight:

ZigBee 3.0 Smart Plug

10A Max Load Smart Outlet

Repeater Function ZigBee Plug

Product Description

US ZigBee 3.0 Smart Plug 10A with Repeater Function

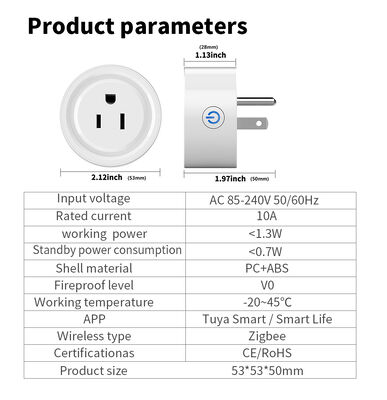

Technical Specifications

Protocol	ZigBee 3.0 (Standard)
Network Type	Mesh Network (Acts as Repeater)
Hub Requirement	Yes (Tuya ZigBee Gateway Required)
Rated Current	10A (1100W-2400W)
Input Voltage	AC 85-240V 50/60Hz
Response Time	< 100ms (Faster than WiFi)
Material	PC+ABS V0 Fireproof
Stability	High (Does not congest WiFi router)

Product Overview

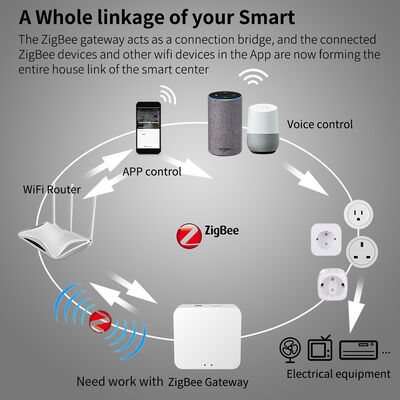

Build a robust whole-home smart system with our ZigBee 3.0 Smart Plugs. Unlike WiFi devices that congest routers, these plugs connect via a ZigBee Gateway, offering extreme stability for 50+ device setups. Each plug acts as a signal repeater, extending the network range to distant rooms. Ideal for professional installers looking for reliable hardware that reduces after-sales maintenance calls due to offline issues.

Product Images
