ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard

Brand Name:	SIXWGH
Model Number:	WHDZ03
MOQ:	500
Price:	USD+3.8-4.8+piece
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	10000+piecex+10days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE,RoHS,FCC,UL

Wireless Standard:

ZigBee 3.0 (IEEE 802.15.4)

Network Topology:

Mesh Network (Repeater Mode)

Available Standards:

EU (Type F) / US (Type B) / UK (Type G)

Max Power (EU/UK):

3680W (16A)

Max Power (US):

1100W-2200W (10A)

Standby Power:

<0.3W (High Efficiency)

Housing Material:

PC+ABS V0 Fireproof

Hub Compatibility:

Tuya / Smart Life ZigBee Gateway

Certification:

CE, RoHS, FCC

Working Temp:

-20°C ~ 45°C

Packaging Details:

100pcs/box 9.5kg/box Size:45*30*24cm

Highlight:

ZigBee 3.0 Smart Wiring Devices

Smart Wiring Devices Mesh Repeater

UK Standard smart outlet zigbee

Product Description

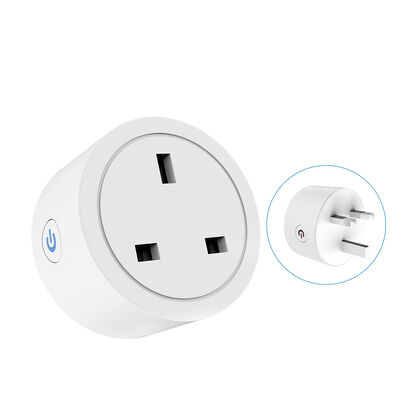

ZigBee 3.0 Smart Plug with 16A Max Load and Mesh Repeater Function for EU/US/UK Standards

Solve the "device offline" challenge in large smart home projects. Unlike WiFi plugs that congest routers, our ZigBee Smart Sockets connect via a gateway to build a robust Mesh Network. Each plug acts as a signal repeater, extending coverage to distant sensors. Available in EU, US, and UK standards, this series is perfect for cross-border wholesalers and installers demanding industrial-grade stability and energy monitoring features.

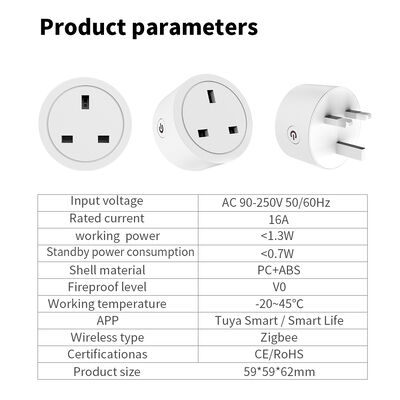

Technical Specifications

Feature	Specification
Protocol	ZigBee 3.0 (Stable & Low Latency)
Network Role	Router Node (Mesh Signal Repeater)
Gateway Required	Yes (Tuya / Smart Life Hub)
Max Load (EU/UK)	16A / 3680W (High Power)
Max Load (US)	10A / 1100W (Standard)
Energy Monitor	Real-time KWh Tracking (EU/UK Models)
Material	PC V0 Fire Retardant
Certificates	CE, RoHS, FCC, EC-RED

Frequently Asked Questions

Why use ZigBee plugs for whole-house projects?

ZigBee devices don't use the router's WiFi bandwidth. This allows you to install 100+ devices in one home with extreme stability and faster response times (<100ms).

Do these plugs extend the network range?

Yes. As mains-powered ZigBee devices, they automatically act as "Mesh Repeaters," boosting the signal for battery-powered sensors (like door/motion sensors) further away from the hub.

Which gateway is compatible?

They are fully optimized for Tuya ZigBee Gateways (Wired/Wireless) and compatible with standard ZigBee 3.0 coordinators (e.g., Home Assistant via Zigbee2MQTT).

What is the "Group Control" feature?

It allows users (or installers) to group multiple plugs (e.g., "Living Room") and control them all with a single tap or voice command, ideal for complex lighting setups.

Do all models have Energy Monitoring?

The EU (16A) and UK (16A) models support full Energy Monitoring. The US (10A) mini model focuses on compact control. Please check specific SKU details.
