4 Inch HD IPS Smart Home Control Panel ZigBee 3.0 Gateway Video Intercom Hub

Brand Name:	SIXWGH
Model Number:	WHZK-003 (US)
MOQ:	200
Price:	USD+92-100+piece
Payment Terms:	D/A,D/P,L/C,T/T,Western Union
Supply Ability:	10000+piecex+10days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE,RoHS,FCC,UL

Product Model:

TPP05-Z (Linux Version)

Main Chipset:

Rockchip RK3308 Quad-Core

Operating System:

Linux 4.0 IoT OS

Wireless Protocol:

ZigBee 3.0 + Wi-Fi + Bluetooth

Microphone:

Dual Array (Noise Cancellation)

Relay Load:

2-Gang Switch (200W/gang)

Voltage Input:

100V-240V 50/60Hz

Security Linkage:

Local Edge Computing

Network Port:

RS485 Supported

Installation:

US/EU Standard Wall Box

Packaging Details:

36*25*20cm/12pcs/3.8kg

Highlight:

4 Inch Smart Home Control Panel

Video Intercom Smart Home Control Panel

zigbee smart hub Panel

Product Description

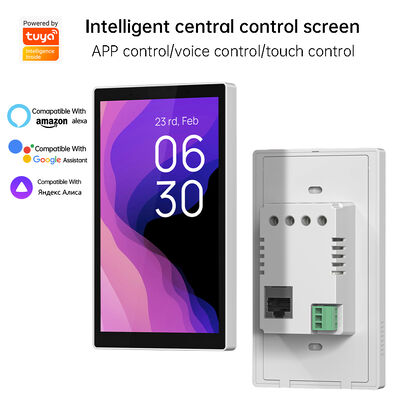

Linux 4" Smart Control Panel with Alexa Built-in Video Intercom Hub

Core Specifications

Security Role	Central Video Intercom Monitor
OS System	Linux IoT OS (Fast & Stable)
Processor	Rockchip RK3308 (4-Core Cortex-A35)
Gateway Protocol	ZigBee 3.0 (Connects 100+ Sensors)
Voice Service	Alexa Built-in (Dual Mic Array)
Display	4-inch 480×480 HD IPS
Wiring	Neutral + Live Wire (Standard Box)
Relay Output	2-Gang Switch Control

Product Overview

Redefine home security projects with this centralized security hub. Replacing traditional bulky indoor intercoms, this 4-inch panel links seamlessly with smart doorbells and cameras. When a visitor presses the bell, the video automatically pops up on the screen, creating a fixed security station. Powered by Edge Computing, it executes local ZigBee security scenes (e.g., "Breach Detected → Alarm On") instantly, ensuring protection even without cloud connectivity.

Frequently Asked Questions

Can this replace a traditional video intercom indoor unit?

Yes. It supports Multimedia Interconnection. It links with Tuya video doorbells to provide real-time video and 2-way audio, saving the cost of installing separate intercom screens.

How does it handle security sensors?

It has a built-in ZigBee 3.0 Gateway. You can connect door sensors, PIR motion detectors, and smoke alarms directly to this panel to form a complete alarm system.

Is the system stable for commercial projects?

Absolutely. It runs on a customized Linux OS, which is faster, more stable, and more secure than standard Android panels, ensuring 24/7 uninterrupted operation.

Does it support "Panic Mode" for the elderly?

Yes. It can be paired with an SOS button. When pressed, the panel triggers an alarm and notifies the management center or family members immediately.

Does it record video?

While the panel enables viewing, the linked doorbell/camera handles the recording (to SD card or Cloud), allowing the panel to remain lightweight and fast.
